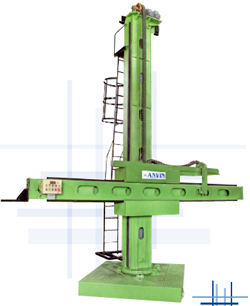

Welding Column & Booms



We are Manufacturer, Supplier, Exporter of Welding Column & Booms and our setup is situated in Pune, Maharashtra, India.

We offer to our clients a wide range of precision manufactured Welding Column & Booms that are widely used in varied industries for welding purposes, Known for their efficient performance and accuracy, our products come in a wide range of choices and successfully meet the expectations and varied requirements of our clients. We manufacture Column & Boom for manipulating welding heads / torches used for various welding application.

Features :
Rugged Construction.
Wide Based & Lockable 'Swivel Base is to enhance Stability.
'Fail Safe' anti-fall mechanisms in all models.
Minimum deflection even when 'Boom' extended fully.
Precise 'Jerk free' vertical & horizontal movements.
Over rated, pre-loaded and dust protected bearing arrangements.
Operator's seat at conveniently placed location.
Option for Chair for operator on heavy duty models.
Welding Column & Booms


Main Advantages :
Increased Production
Allows maximum flexibility to welding head manipulation.
Better weld quality with reduced labour.
Dependable even for most criticalweld quality.
Assures high quality welding with non-dependent on operator's skill.
Essential toll for automatic / semi-automatic welding.
Indispensable for pipe / vessels fabrication shops.
Ensures 360-degrees radial accessibility to welding head, covering vast area in the shop.
Trolley car mounted version gives accessibility to the full shop length.
Easy high quality automatic circumferential or longitudinal seam welding in conjunction with Rotators or Positioner.

Optional
• Base with AC fix speed (speed - 1200 mm I Min.) 'trolley car' type movable on rail track.
• Operator's chair, Walkway for all model.
• Motorized column swiveling, from 0 to 360 degrees.
• Integration of control panelwith Welding head, Seam tracker and Flux recovery units.

WELDING COLUMN & BOOM SPECIFICATION
MODEL
CB1515
CB2020
CB3030
CB4040
CB5050
CB6060
VERTICAL STROKE
(mm)
1500
2000
3000
4000
5000
6000
HORIZONTAL STROKE
(mm)
1500
2000
3000
4000
5000
6000
BOOM TRAVERSE SPEED
(mm/min)
150-1250
150-1250
150-1250
150-1250
150-1250
150-1250
BOOM LIFTING SPEED
(mm/min)
750
750
750
750
600
600
MAX.LOAD AT
EXTREMITY(KG)
100
200
200
200
300
300
